The ECU data-logger is a hardware/software combination. The hardware is plugged into your car's ECU using the serial port and hooked up to its ignition for power; it is left in the car. Live data monitoring functions are available in a browser on your own device(s) via a Wi-Fi connection that the data-logger provides.
The data-logger monitors telemetry received from the ECU and it will alert you of:
Data from your car can be uploaded to this internet site, where it can be further analysed and you can replay it to help trace issues.

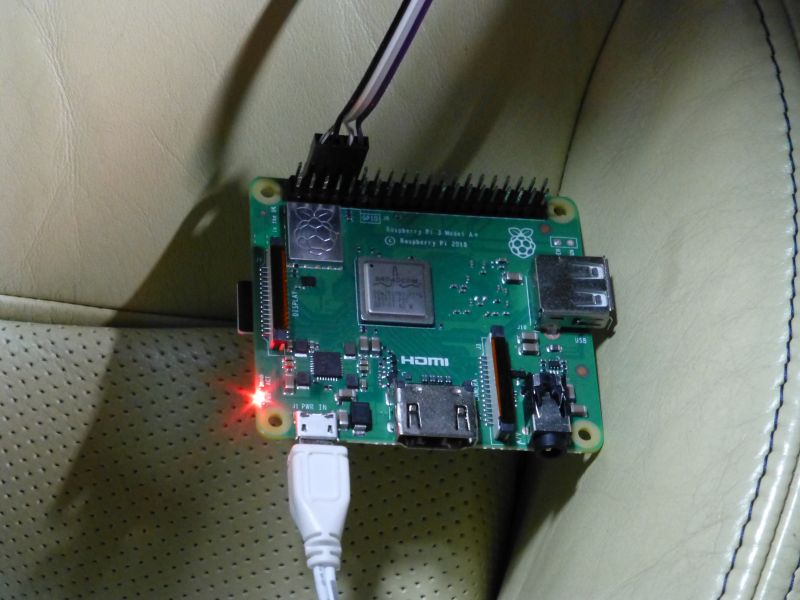

You plug it into your car's ECU serial connection... NB: this is a prototype that is not being powered by the car.

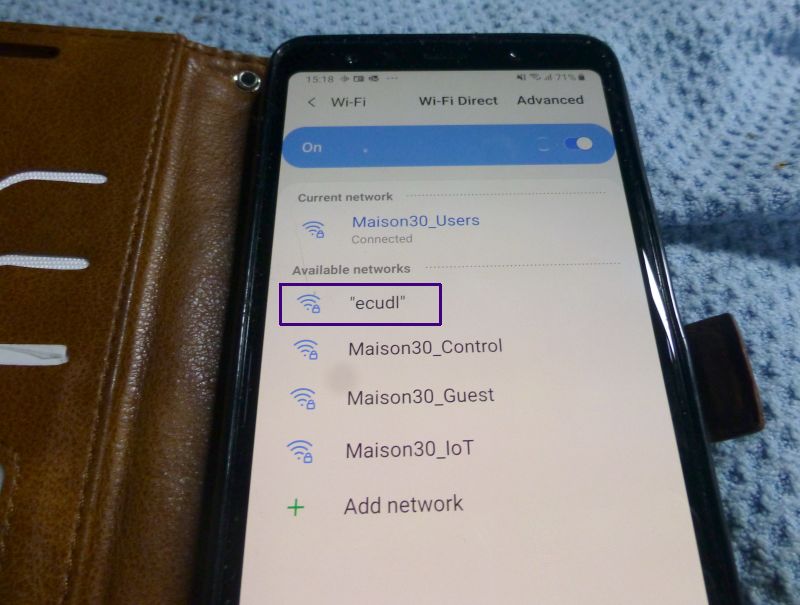

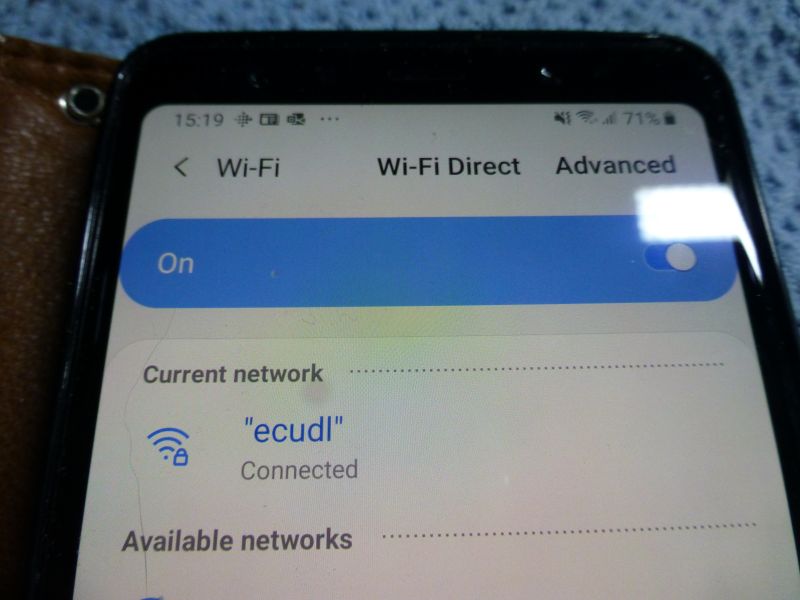

The device's Wi-Fi SSID will be available on your device.
This interface is available wherever you are and does not require an internet connection.
Real-time monitoring of the RPM, oil pressure, fans, air/water temperature, battery.
Monitor more detailed engine information.

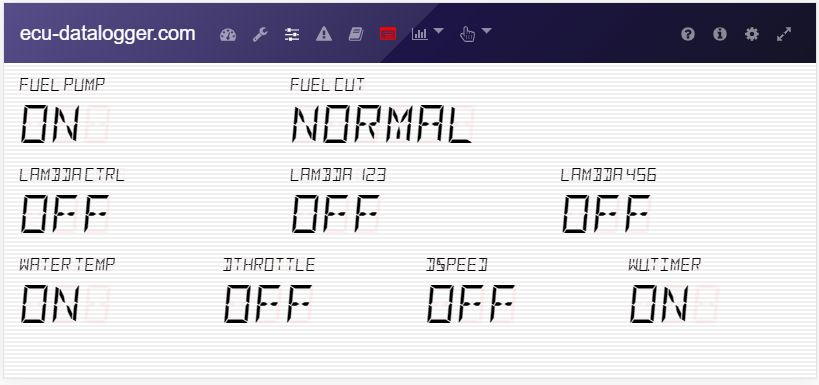

View the ECU's parameters and what it is controlling.

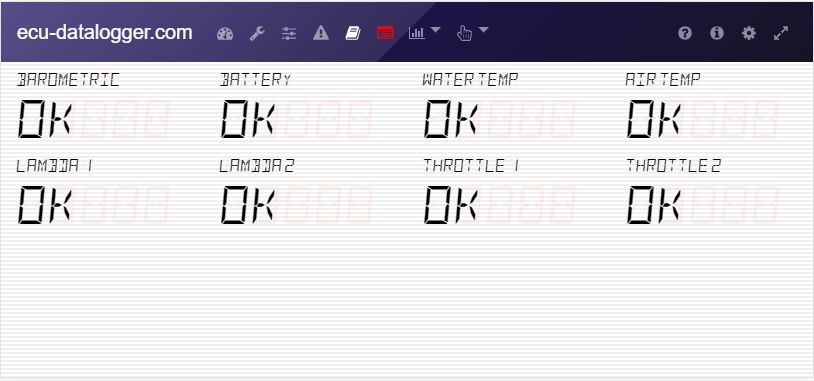

View faults that the ECU has logged.

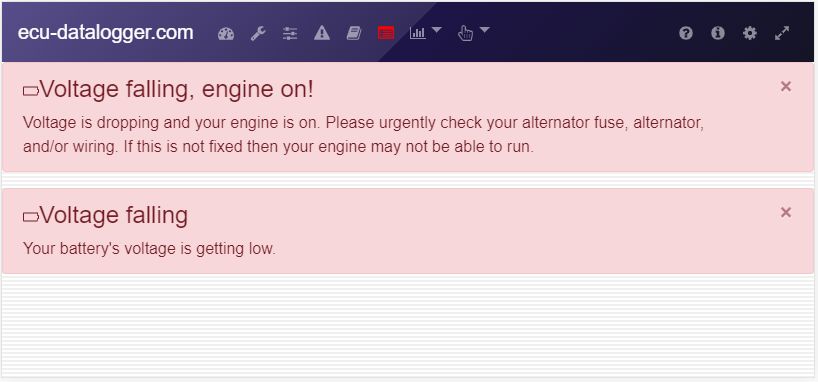

Some examples of conditions the data-logger can alert you of:
Indicative functionality.

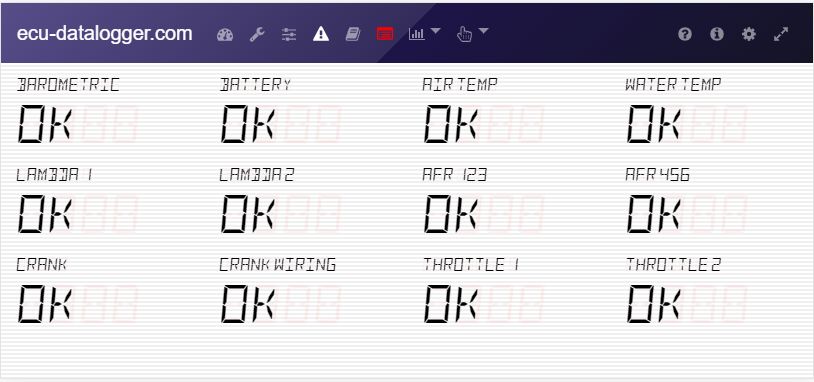

Check that your sensors are working correctly.

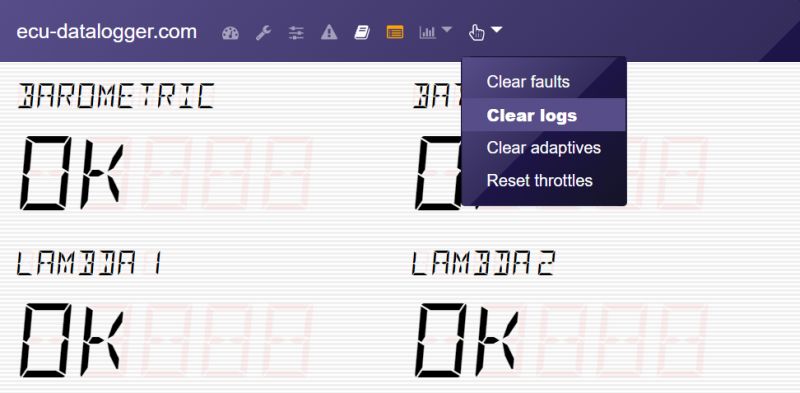

Clear current faults, logged faults, adaptives, and reset the throttle pot positions data.

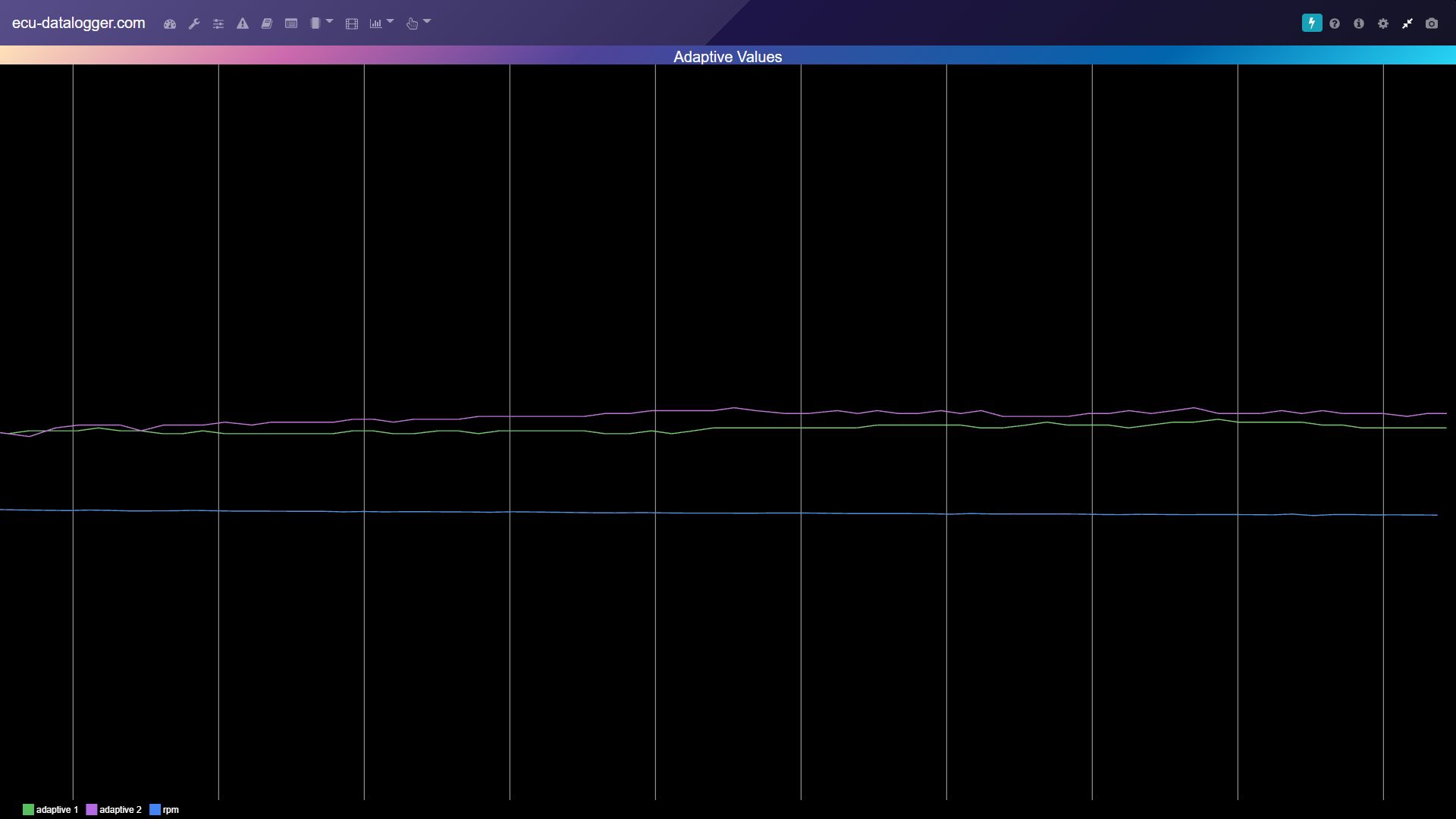

See your ECU's adaptive values, live.

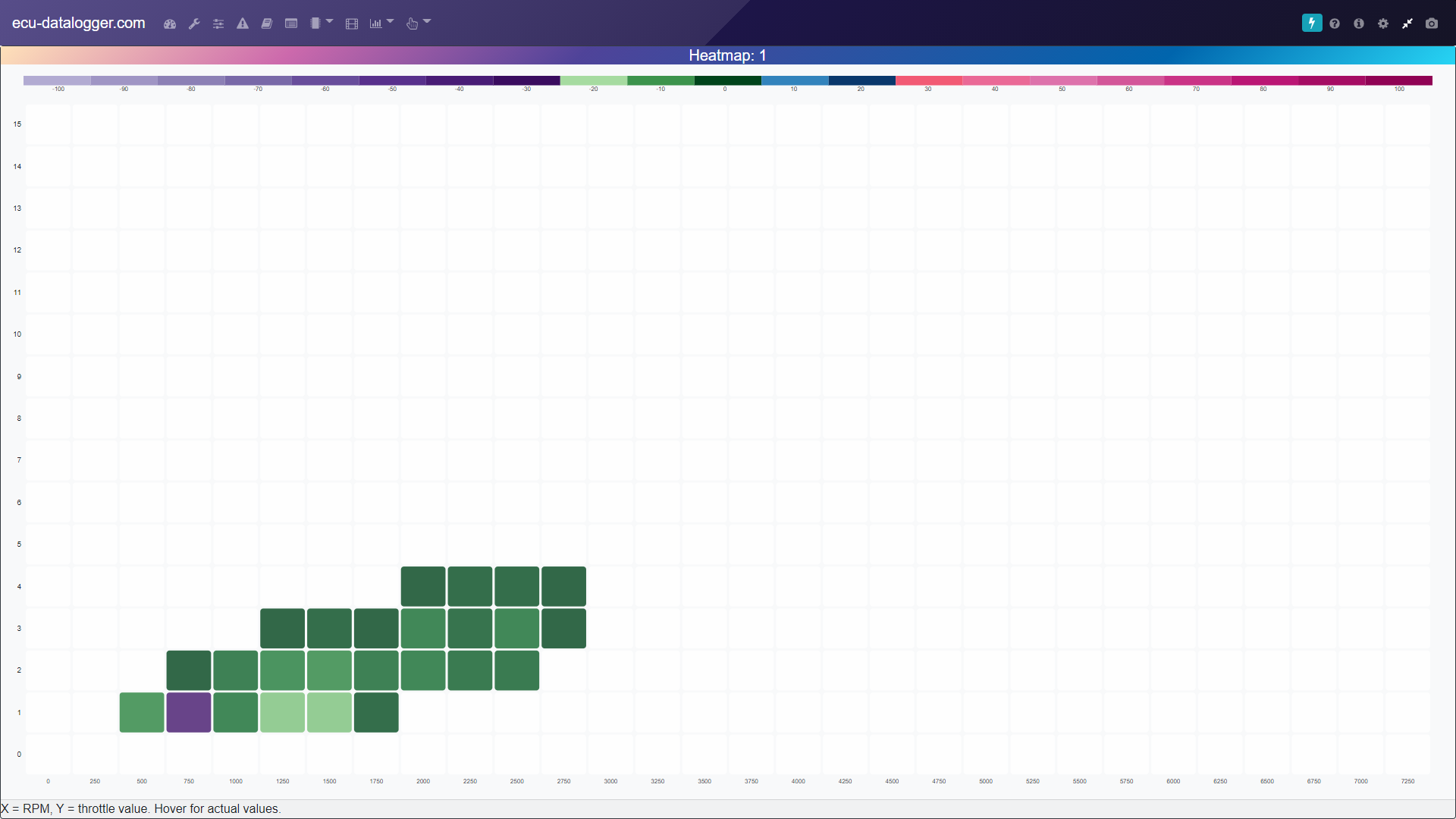

Visualise your car's adaptive maps as a table of values, a heatmap, ...

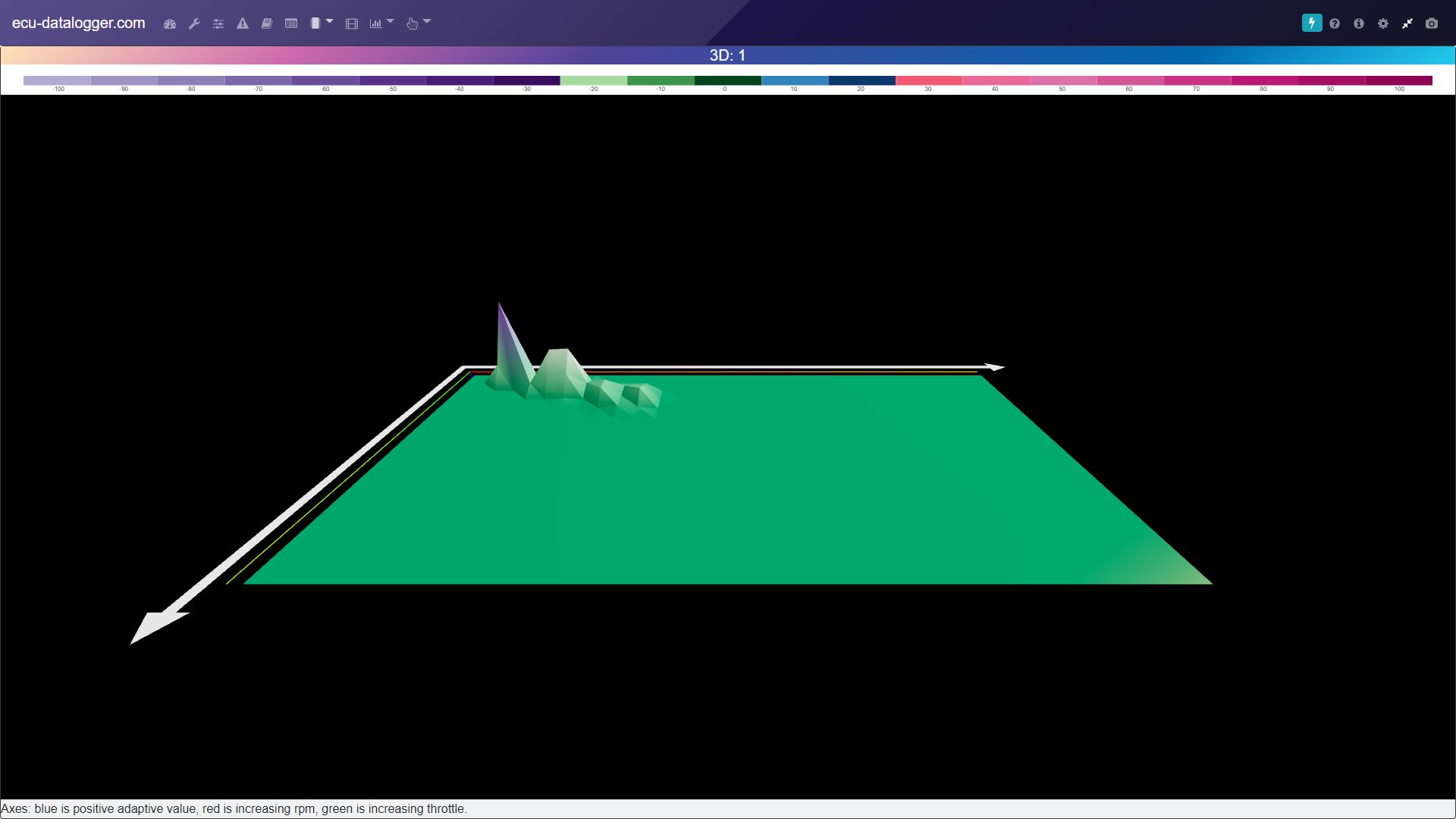

... and in 3d.
Monitor your lambda sensors using a live graph.

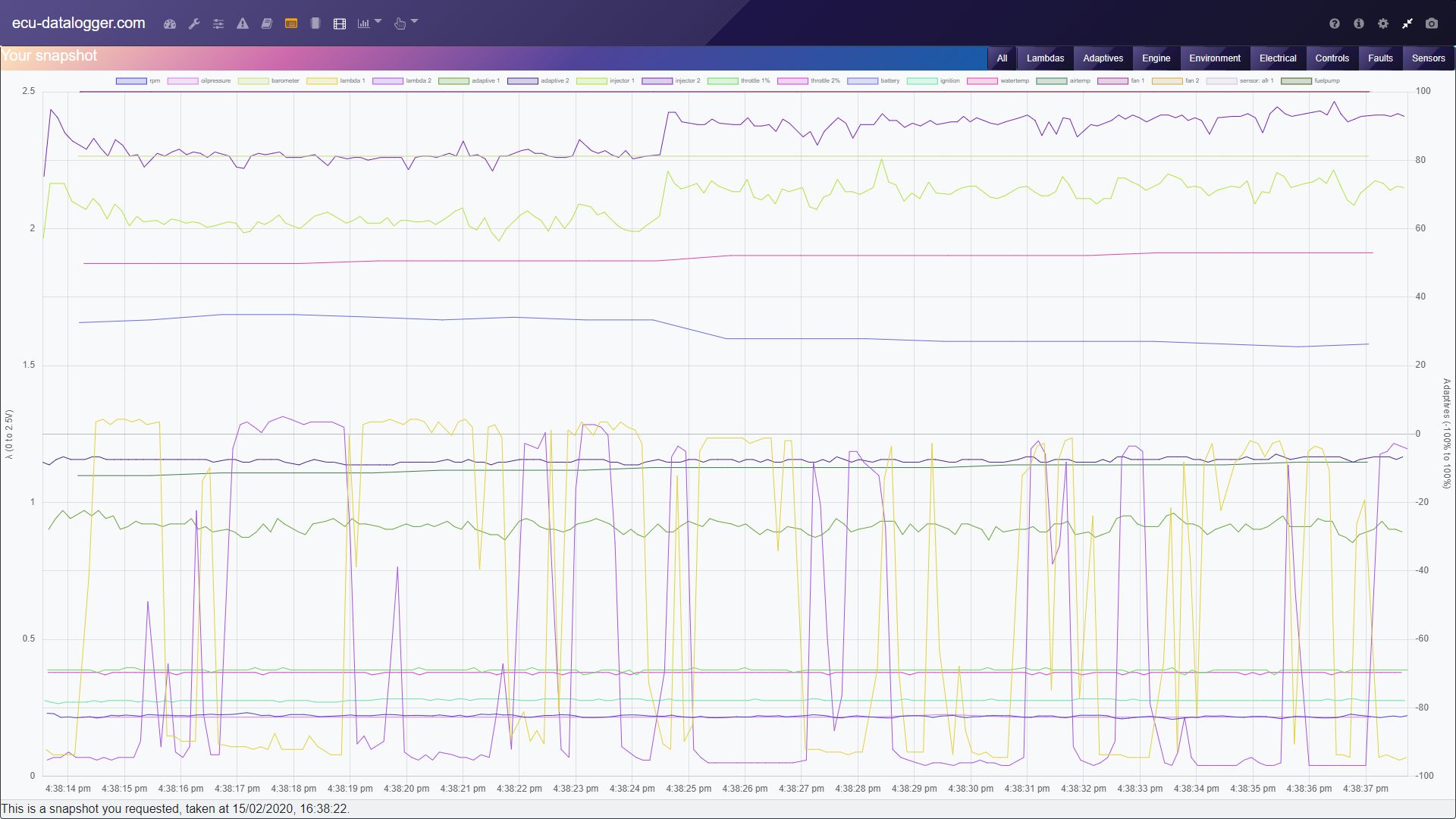

Take snapshots of your telemetry and analyse it later.
Live injector timings.

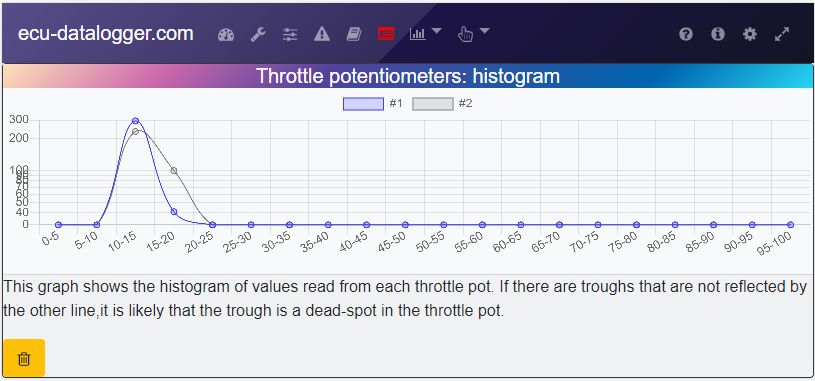

Check your throttle pots for dead spots.
Compare your throttle potentiometers.
* only with TVR's standard ECU.
An alpha (i.e. unfinished) version of what will be available directly from the device is here. Provisos:
This device was designed as a wire-in-and-forget solution:
It is likely that I will sell software & you will need to buy off-the-shelf hardware and plug it together. I may sell or provide data cables so you won't have to solder if you do not want to.
I am now aiming for Q3 2021. This is later than expected due to Covid making me unable to put miles on the car to collect data and additional child care responsibilities (due to creche closures... and an additional child!)
Left to complete:
No. This has been hundreds of hours of work and I wish to retain control of it. If you are looking for the communications protocol it has already been made available online.
A TVR Tuscan.
It is a Raspberry Pi 3 Model A+ with some off-the-shelf additions. The main extra is a UPS which allows the device to safely complete logging, or uploads to the analysis site, and power itself down when the ignition is not on.
I have developed software professionally for many years. My day job has become IT management rather than development, but development is still my interest/hobby, hence this software. I live in Luxembourg with my wife and daughter.
I started my TVR ownership with a TVR Tuscan in 2014 - unfortunately written off in 2018 - and own: a Tuscan MK1, a 350i FHC +2 (restoration almost finished!), and a Tasmin FHC +2 (restoration pending), ... and a written off Tuscan (restoration pending!).
The test mule. It's like this but Imperial Blue. Due to spending longer than expected registering it in Luxembourg I do not have a nice picture of it yet!
Has some scratches that won't buff out.
The 6th and final 350i FHC +2 built.
#4 of 47.
